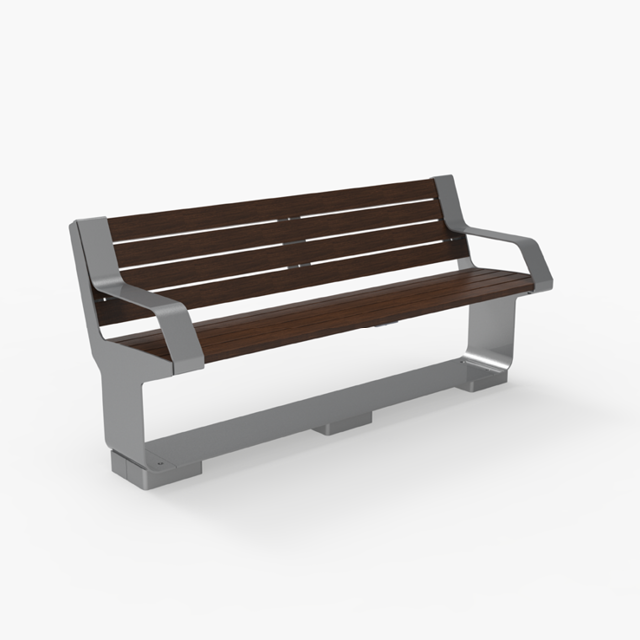

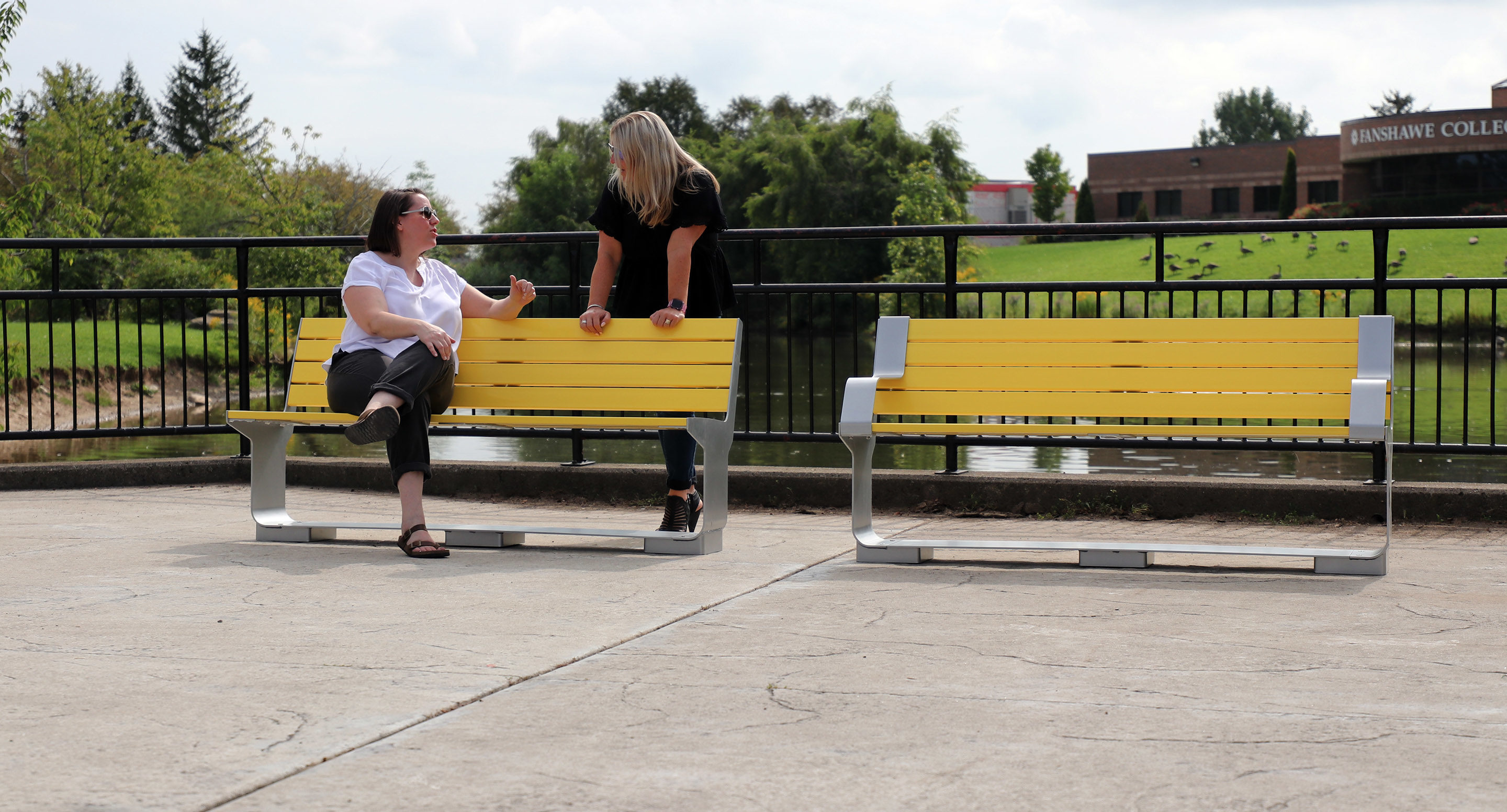

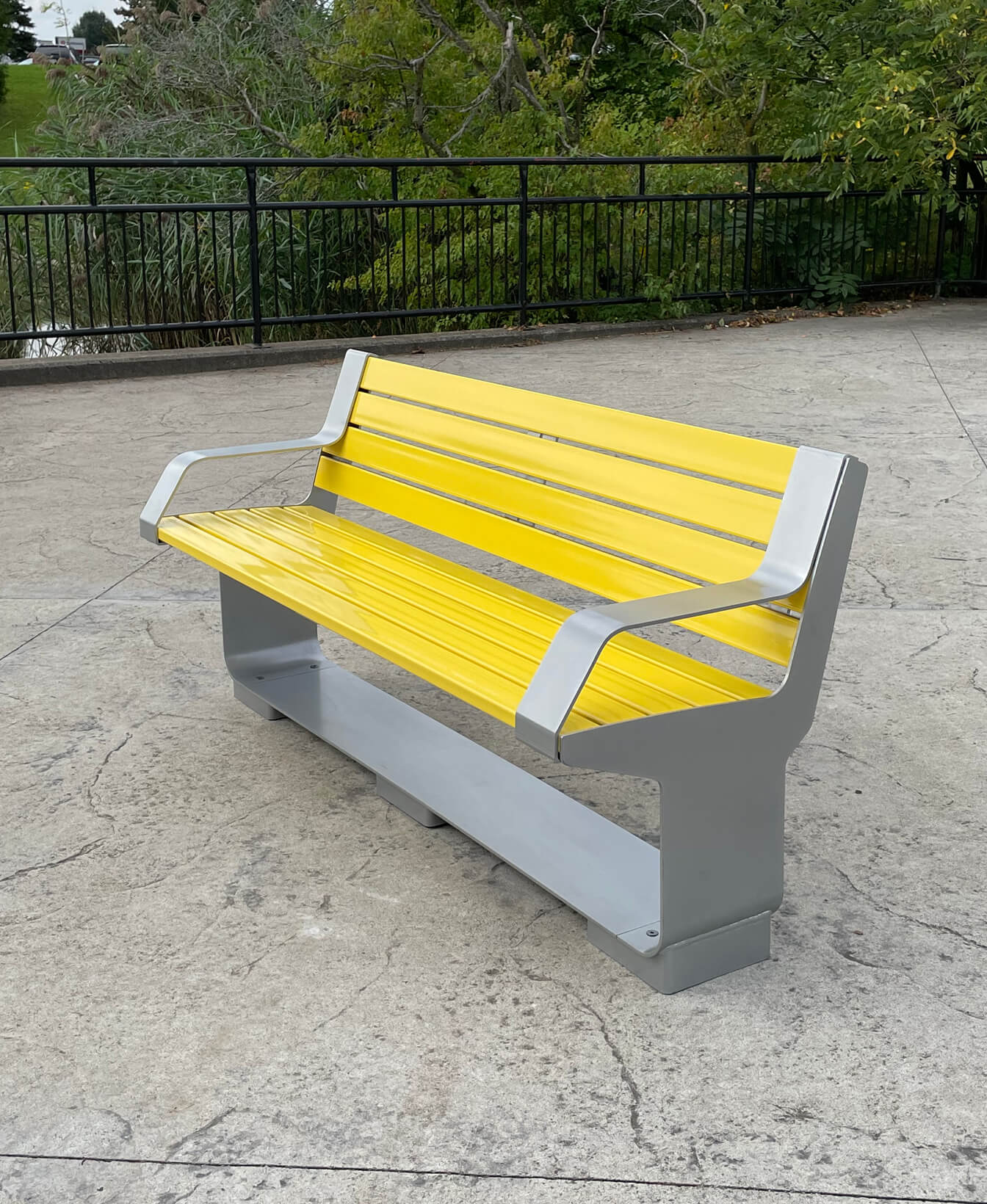

L-Series Backed Bench
Designer: Geoffrey Lilge
Linger a little—or a lot. With its lightweight look and luxurious lines, the L-Series Backed Bench invites you to sit and stay awhile.
Linger a little—or a lot. With its lightweight look and luxurious lines, the L-Series Backed Bench invites you to sit and stay awhile.
Product Info
Finishes
Steel and Aluminum components are protected with E-Coat Rust Inhibitors. The Maglin Powdercoat System provides a durable finish on steel and aluminum surfaces. Wood is finished with penetrating oil.
Installation
The 3000 Series - L-Series Backed Bench is delivered pre-assembled. Insert (4x) 3/8-16 X 3” screws into hardware holes for securing to base. Reference installation instructions for full details.
Material Options
- Thermally Modified Ash Wood
- Steel
- Thermally Modified Oak Wood
Options
- End Arms
- Center Arm
- Skate Deterrent
- Backless Bench
Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples.
*Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Dimensions
Thermally Modified Ash Wood
| Image | Model | Description | Height | Length | Weight |
|---|---|---|---|---|---|
 |

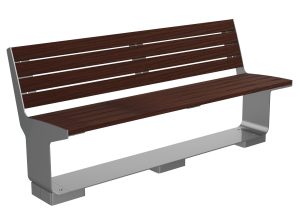

MBE-3000-00002 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Ash Wood Seat and Back | 31.3” (79.4cm) | 66.5” (168.9cm) | 178lbs (80.7kg) |
 |

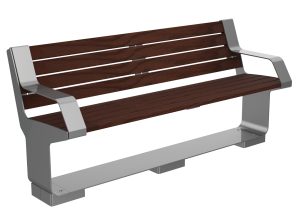

MBE-3000-00005 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Ash Wood Seat and Back, Two End Arms | 31.5” (80.0cm) | 66.5” (168.9cm) | 198lbs (89.8kg) |
 |

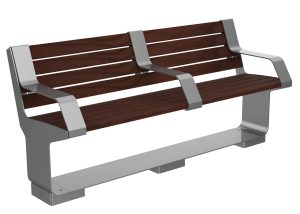

MBE-3000-00008 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Ash Wood Seat and Back, Two End Arms, Center Arm | 31.5” (80.0cm) | 66.5” (168.9cm) | 207lbs (93.9kg) |
 |

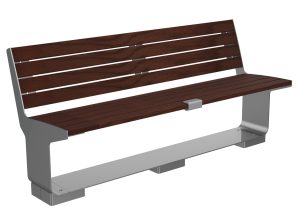

MBE-3000-00011 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Ash Wood Seat and Back, Skate Deterrent | 31.3” (79.4cm) | 66.5” (168.9cm) | 180lbs (81.6kg) |
 |
MBE-3000-00014 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Ash Wood Seat and Back, Two End Arms, Skate Deterrent | 31.5” (80.0cm) | 66.5” (168.9cm) | 199lbs (90.3kg) |
Steel
| Image | Model | Description | Height | Length | Weight |
|---|---|---|---|---|---|
 |

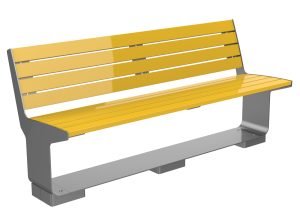

MBE-3000-00003 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Seat and Back | 31.3” (79.4cm) | 66.5” (168.9cm) | 222lbs (100.7kg) |
 |

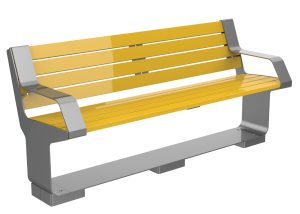

MBE-3000-00006 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Seat and Back, Two End Arms | 31.5” (80.0cm) | 66.5” (168.9cm) | 241lbs (109.3kg) |
 |

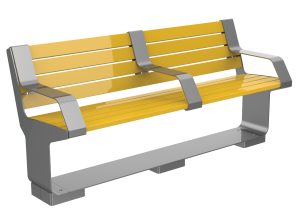

MBE-3000-00009 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Seat and Back, Two End Arms, Center Arm | 31.5” (80.0cm) | 66.5” (168.9cm) | 251lbs (113.9kg) |
 |

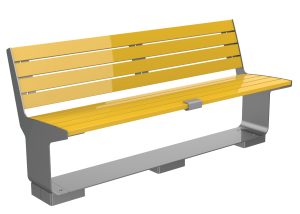

MBE-3000-00012 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Seat and Back, Skate Deterrent | 31.3” (79.4cm) | 66.5” (168.9cm) | 223lbs (101.2kg) |
 |
MBE-3000-00015 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Seat and Back, Two End Arms, Skate Deterrent | 31.5” (80.0cm) | 66.5” (168.9cm) | 243lbs (110.2kg) |
 |

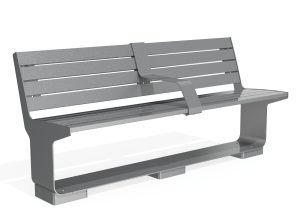

MBE-3000-00038 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Seat and Back, Center Arm | 31.3” (79.4cm) | 66.5” (168.9cm) | 232lbs (105.2kg) |
Thermally Modified Oak Wood
| Image | Model | Description | Height | Length | Weight |
|---|---|---|---|---|---|
 |

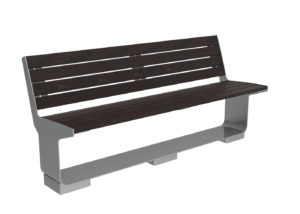

MBE-3000-00039 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Oak Wood Seat and Back | 31.3” (79.4cm) | 66.5” (168.9cm) | 178lbs (80.7kg) |
 |

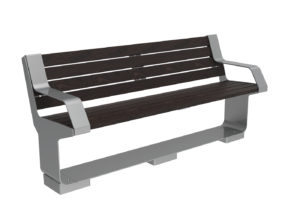

MBE-3000-00040 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Oak Wood Seat and Back, Two End Arms | 31.5” (80.0cm) | 66.5” (168.9cm) | 198lbs (89.8kg) |
| MBE-3000-00041 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Oak Wood Seat and Back, Two End Arms, Center Arm | 31.5” (80.0cm) | 66.5” (168.9cm) | 207lbs (93.9kg) | |
| MBE-3000-00042 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Oak Wood Seat and Back, Skate Deterrent | 31.3” (79.4cm) | 66.5” (168.9cm) | 180lbs (81.6kg) | |
| MBE-3000-00043 | 3000 Series - L-Series Backed Bench: 66.5in L, Steel Frame, Thermally Modified Oak Wood Seat and Back, Two End Arms, Skate Deterrent | 31.5” (80.0cm) | 66.5” (168.9cm) | 199lbs (90.3kg) |
