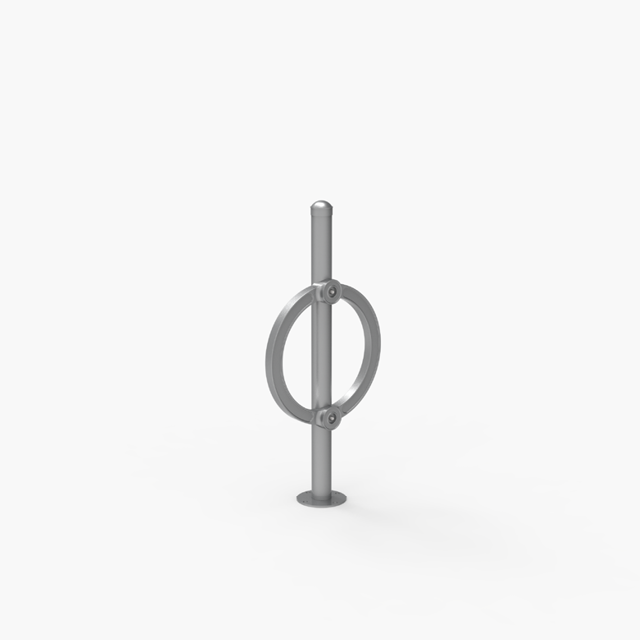

200 Bike Racks
Built to blend into civic landscapes, the 200 Bicycle Rack offers classic utility, durable performance, and optional custom lettering.
Product Info
Finishes
Steel and Aluminum components are protected with E-Coat Rust Inhibitors. The Maglin Powdercoat System provides a durable finish on steel and aluminum surfaces.
Installation
The 200 Series - 200 Bike Rack is delivered pre-assembled. It is available with either a surface mount or direct burial installation option.
Material Options
- Steel
Options
- Direct Burial
- Surface Mount
- Lettering
Sustainability Facts
- Carbon footprint (GWP): 107 kg CO2-Eq (mean)
- Material Recyclability: 100%
- LEED v4.1 Credits
Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples.
*Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Dimensions
Steel
| Image | Model | Description | Diameter | Height | Height Above Grade | Height Below Grade | Weight |
|---|---|---|---|---|---|---|---|
 |

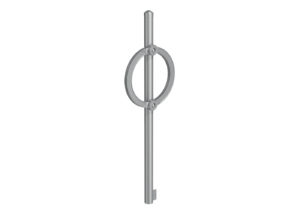

MBR-0200-00001 | 200 Series - 200 Bike Rack: H.S. Steel Tube, Aluminum Spun Top, Direct Burial, 2 Bike Configuration | 16.6” (42.2cm) | 35.8” (91.0cm) | 35.8” (91.0cm) | 18” (45.7cm) | 21.7lbs (9.8kg) |
 |

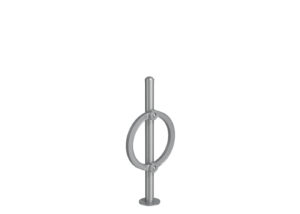

MBR-0200-00005 | 200 Series - 200 Bike Rack: H.S. Steel Tube, Aluminum Spun Top, Surface Mount, 2 Bike Configuration | 16.6” (42.2cm) | 35.9” (91.3cm) | 35.9” (91.3cm) | 18.5lbs (8.4kg) |
