Spectrum Top of Door Strap

Barn Door Hardware Kit

Barn door kit includes hangers, track, dampers and hanging hardware for one barn door weighing up to 250 lbs
Track available in 78 3/4" x 1 9/16" x 1/4" or 96" x 1 9/16" x 1/4"
Acetal wheels with full metal sealed ball bearings ensures a smooth and quiet glide action
Left and right track stops include dampers to minimize door slamming and rattling
Suitable for barn doors 1 3/8" and 1 3/4" thick

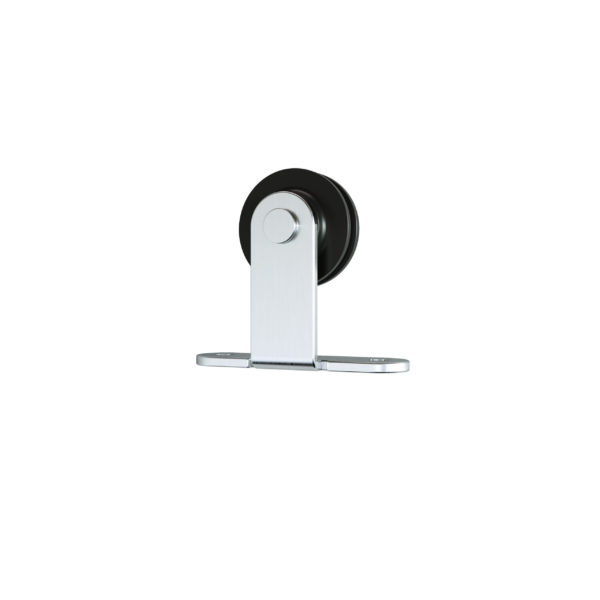

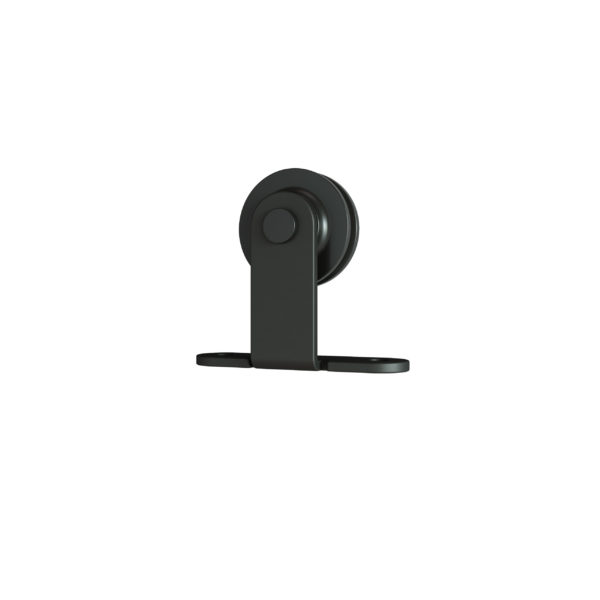

Hanger measures 4 5/8" x 5 5/16" x 1 15/16"
Handle sold separately

Model Number: BD101K
Available Sizes: 78 3/4" and 96"
Max Door Weight: up to 250lbs

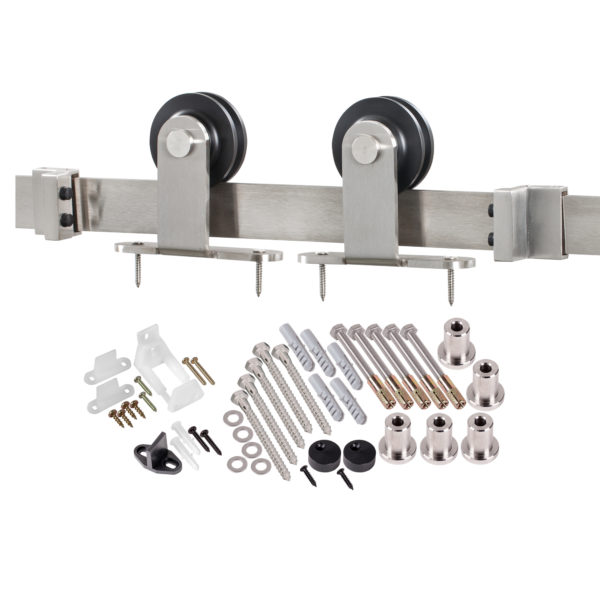

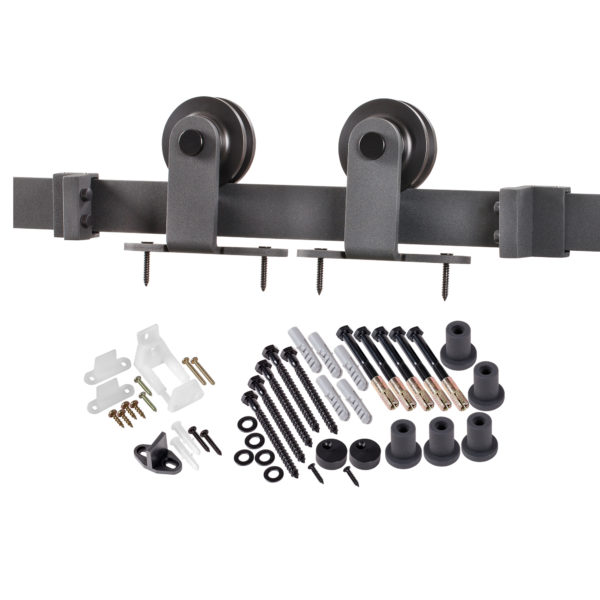

Kit Includes: Kit includes 78 3/4 " or 96" hardened steel track, wall spacers, anti-jump blocks, track end stops, floor guide, wall-mounted guide, floor-mounted guide, track mounting screws, concrete bolts and anchors

Part Number	Hardware Finish	Weight Range	Strap Style	Track Size	Price
	Price: $239.00

What is the exact diameter of the acetal wheel on the Spectrum Barn Door Hardware Kit?

The wheel diameter for the Spectrum Straight Strap, Bent Strap and Top of Door is 2 3/4".

What is the maximum door thickness to use with the Spectrum Barn Door Hardware Kit?

The door thickness must be 1 3/8" or less.

How much clearance space is required from the top of the wheel to the ceiling?

A minimum of 6" is required from the top of the wheel to the ceiling.

Am I able to cut the track?

Yes, you can cut the track. You will need a proper cutting tool and blade to get through the track as it is hardened steel. We recommend that you also file the ends to make sure there are no sharp edges
